DMX Lighting Desk

Lighting Control in software.............

DMX Desk is a Lighting Control desk in software.

It is Modelled on a theatre control type console,
Able to output a DMX signal through a variety of output devices.

Features.

64 Desk Channels

512 Output Channels

Art Net Output ( Thanks to Hippy’s Art-Net Code)

32 Submixes

199 Cues

32 Sequences

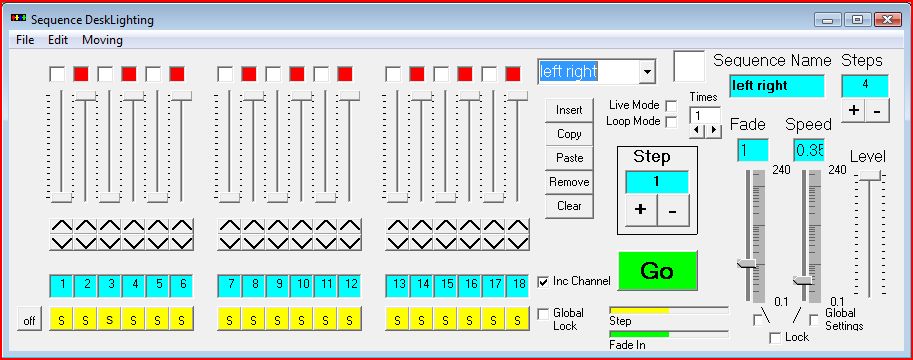

Sequence creator and Editor

80 Programmble Buttons

60 Programmable Faders

Programmable Colour Outputs

Basic Moving light control function

DMX Desk is designed to provide up to 512 channels of lighting using some of the adapters designs available on the internet.

DMX desk is deigned to work with either

Kristof’s Adapter

DMX 3-1 Adapter

Open DMX USB Adapter

Manolator DMX Interface

Oksidizer USB2DMX

The Desk is based on a design by for a light jockey desk, but is now designed to be an computer version of a normal lighting desk.

The Desk is designed to be very programmable and it able to deal wiith colour and colour mixing.

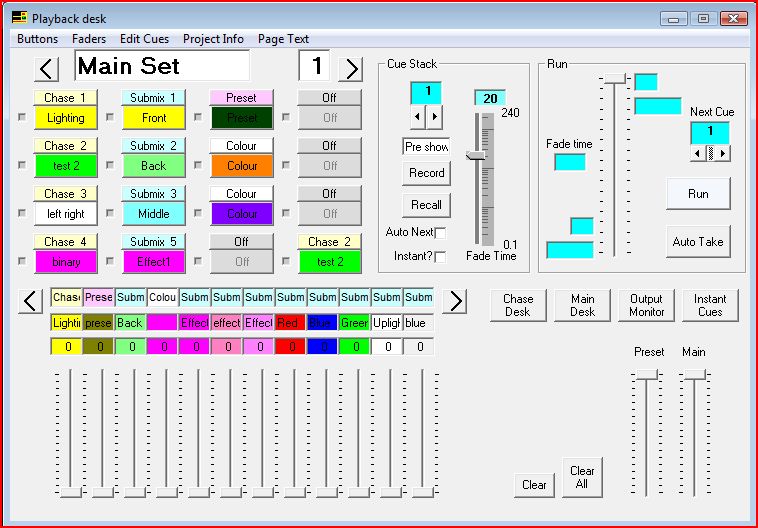

The front part is simular to a standard lighting desk, but the playback desk side give you some very powerfull option to create your own custome designs and sequences.
any ideas and improvement please feel free to contact me.

2009- further improvements..
fixed a few bugs and changed some options with sequences, can now change the timimg of sequences while playing them.

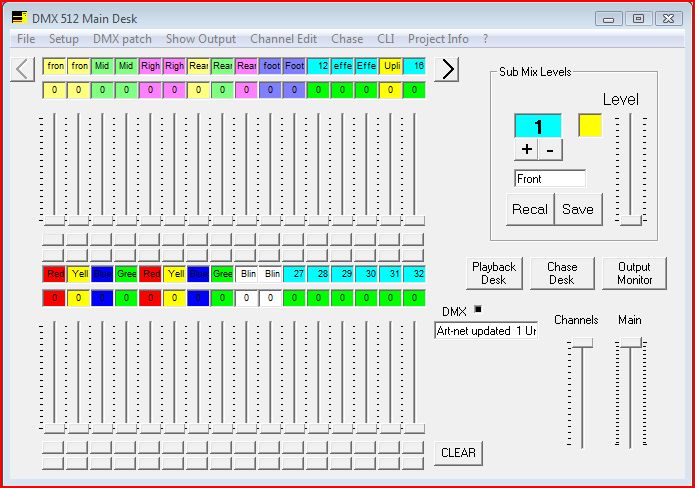

Image of main desk
